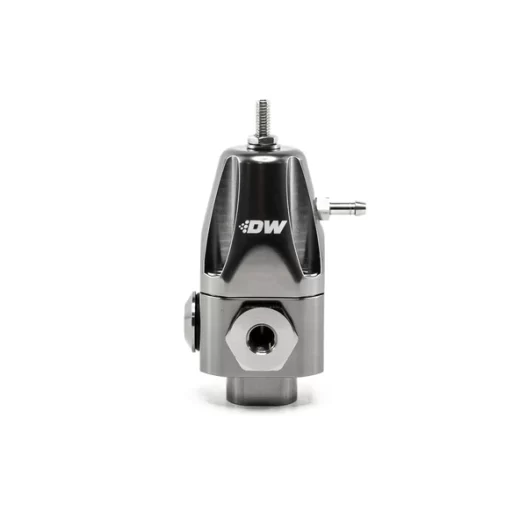

The DWR1000 regulator is engineered to support EFI engines producing between 250HP and 1000HP. This regulator features the optimum balance of fitment versatility, premium construction, and precision performance. Titanium finish.
•2 Precision performance and versatility of up to 1,000HP
•-8AN ORB inlets, -6AN ORB outlet
•Compatible with all fuels including methanol and ethanol
•2 psi per turn precision ball bearing adjustment
•Multi-directional bracket for Installation flexibility
•3 Year Comprehensive Warranty
Specifications:
-Weight            8.6 oz (244g)
-External Materials   Anodized T6061
-Hardware/Brackets  300 Stainless Steel
-Tension Spring     Stainless Spring Steel
-Diaphragm        35mm Fiber-Nitrile
-Pressure Range    30-120psi
-Flow Rating        500 LPH
-HP Rating         1000 HP
-Gauge Port Fitting  1/8″ NPT*
-Inlet Ports         Quad -8AN ORB
-Outlet Ports Single  -6AN ORB
