Description

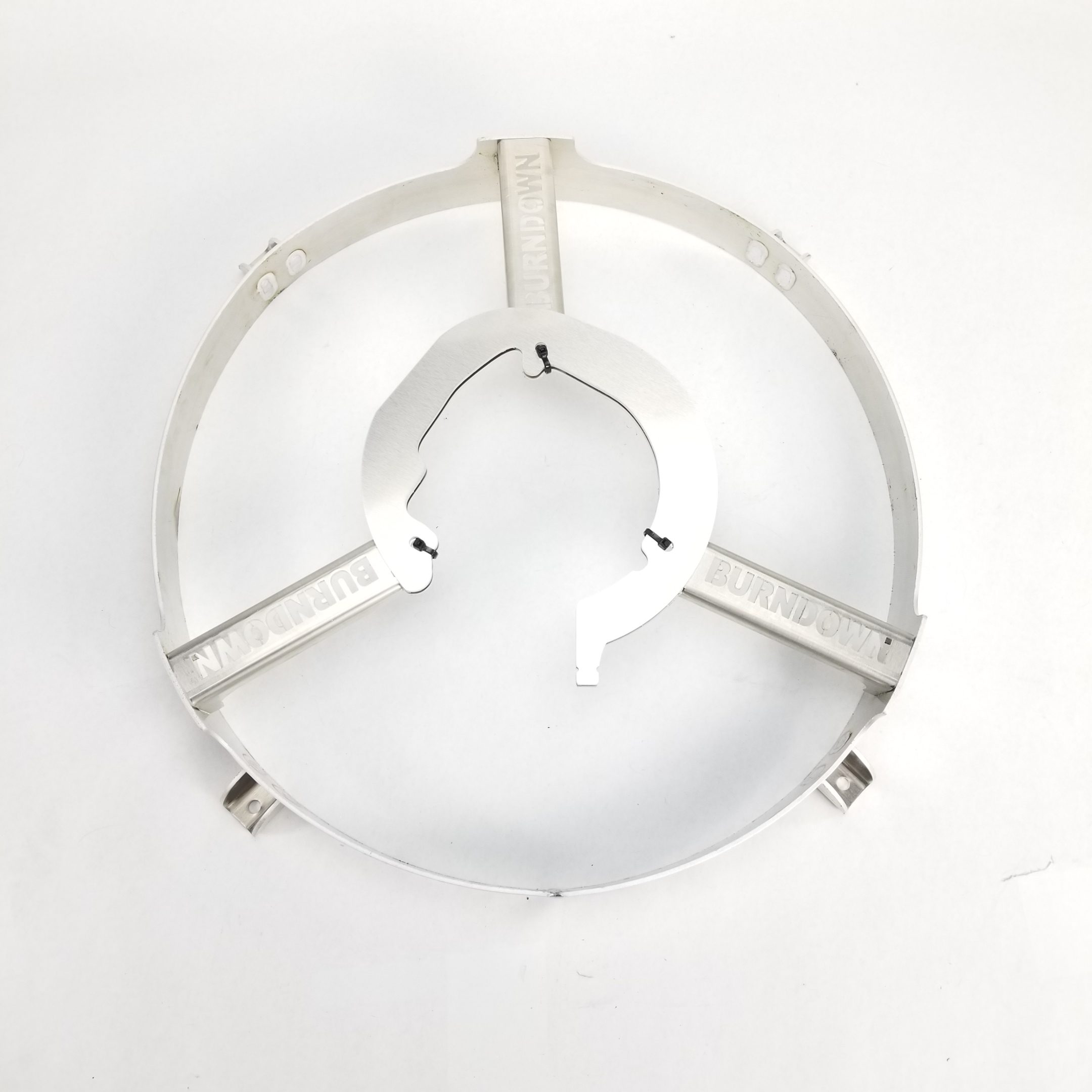

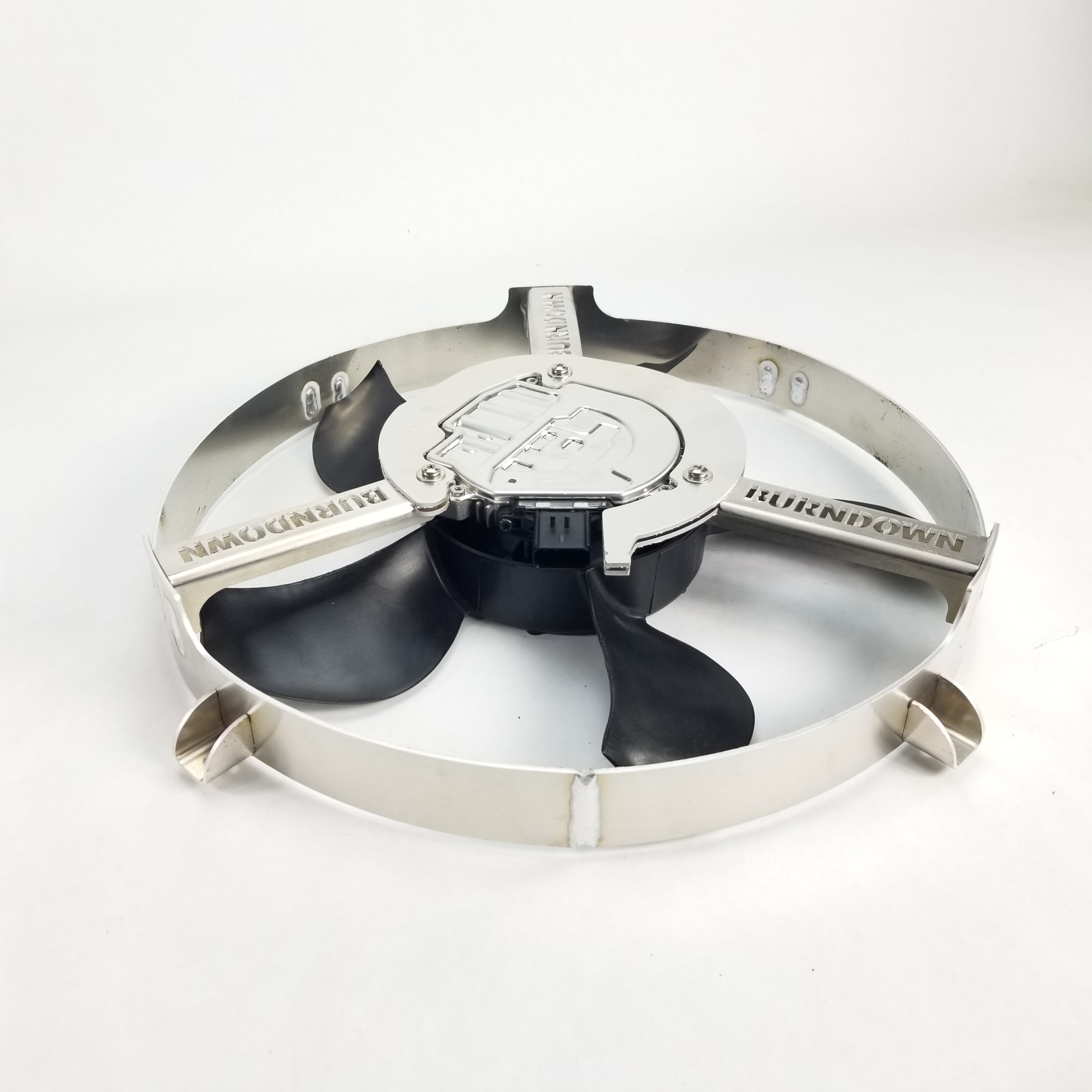

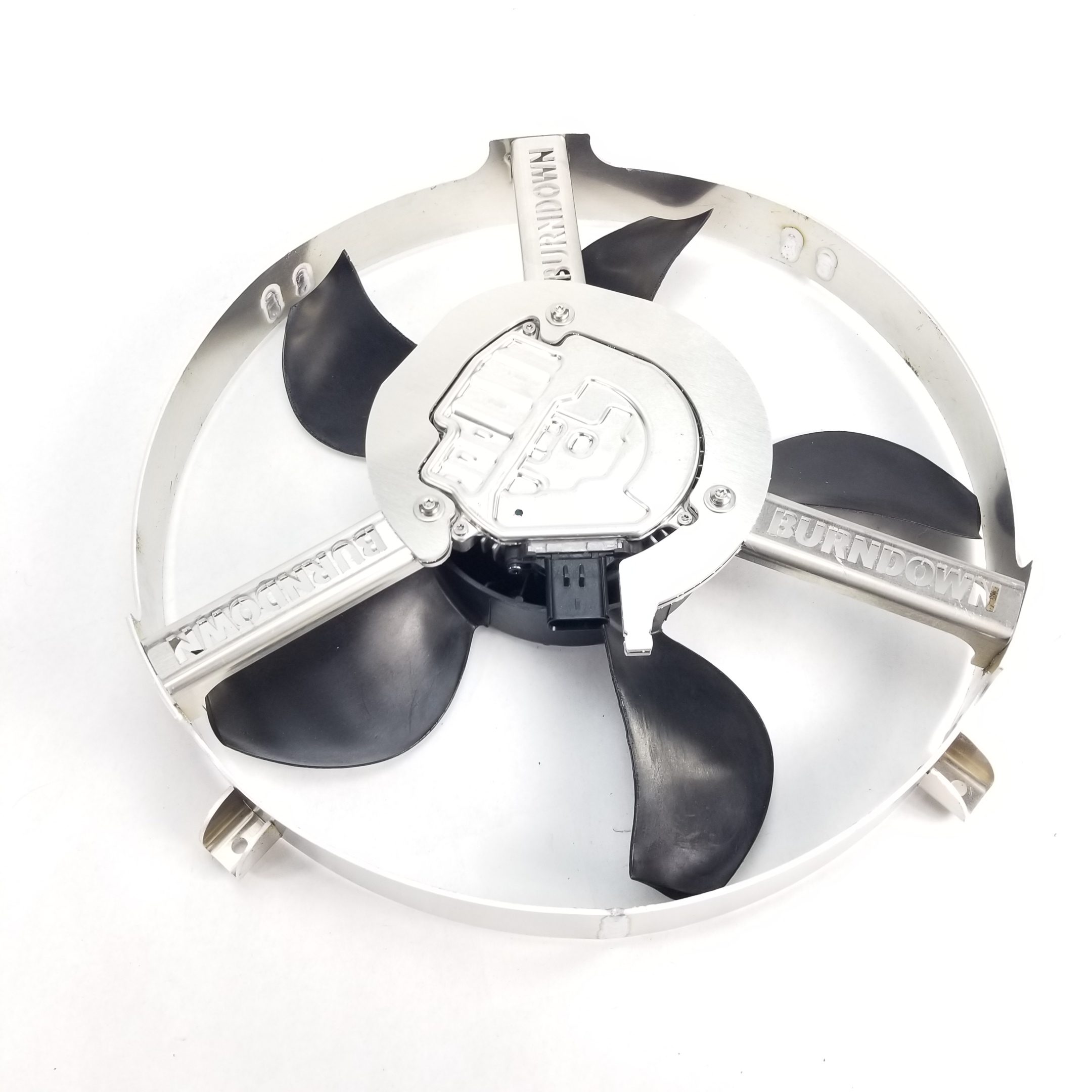

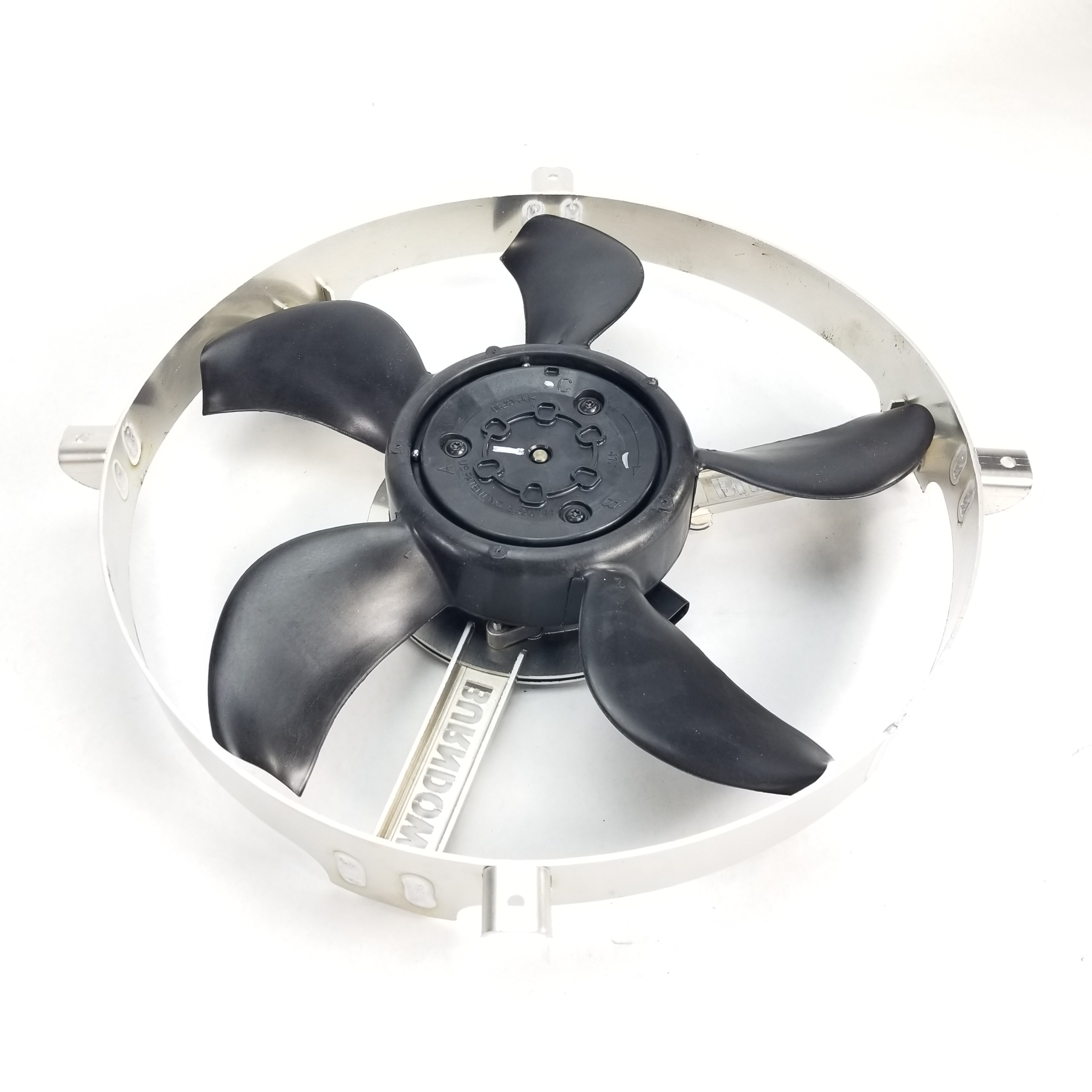

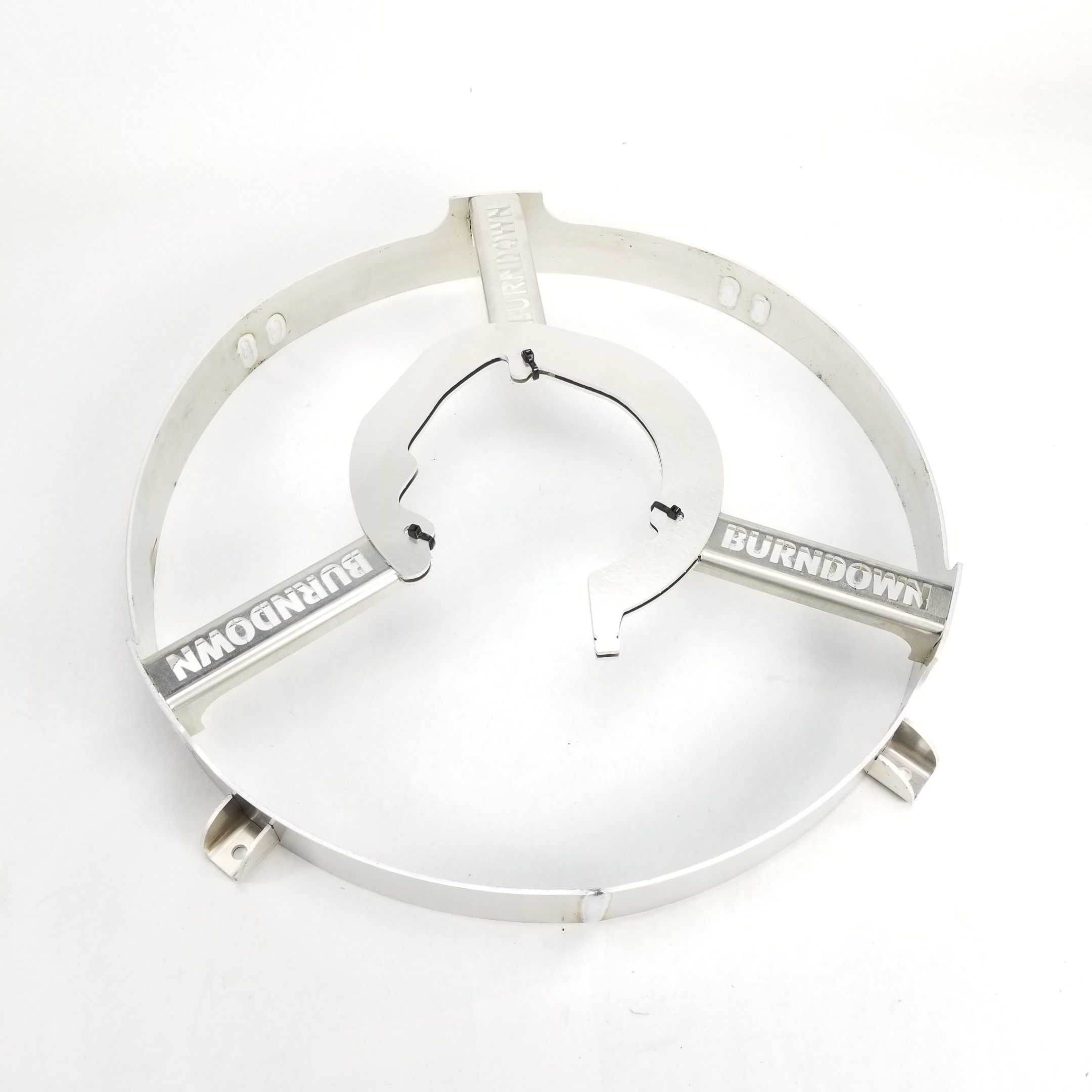

Designed and built by Dane Thompson of the Burndown YouTube channel, this fan mount kit allows you to use the Silverado PWM fans with an aluminum shroud and radiator of your choice. The fan mount is 16-1/4″ in diameter and the fan is approximately 15-1/2″. The mount is 2-1/2″ deep, but the fan protrudes slightly, so you need to use a shroud with a minimum depth of 1/2″. The fan part numbers known to work are 85565556 and 85565557. GM moved to LIN controlled fans around 2020, so we recommend against buying other part numbers unless you’re positive that they’re PWM controlled. Included is the following:

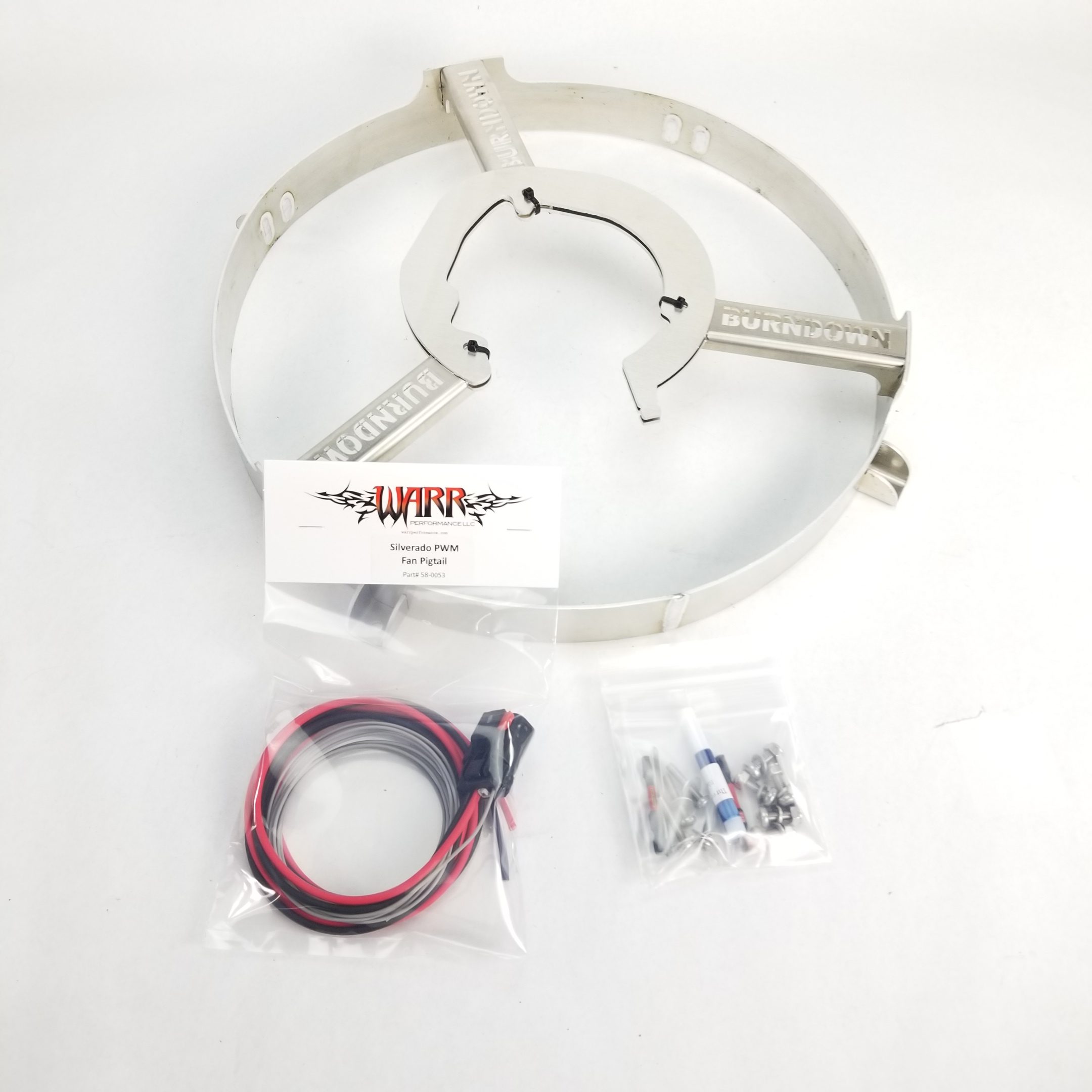

- Fan mount
- Mounting hardware
- Tap for fan mounting holes
- Harness with 4′ power leads and 6′ PWM signal wire
These ship free anywhere in the lower 48! Initial quantities are limited. Once those sell out, we’ll be accepting pre-orders for the next batch.
