Description

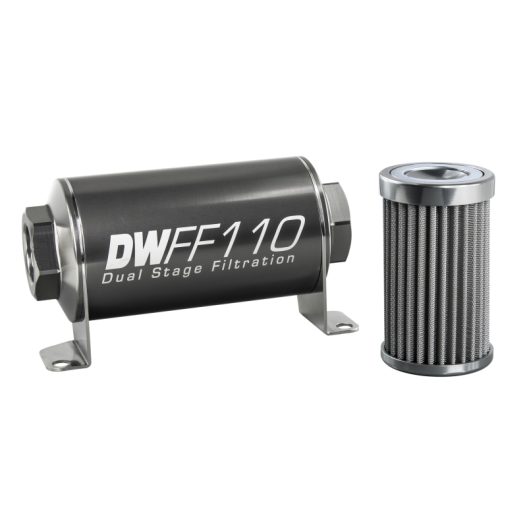

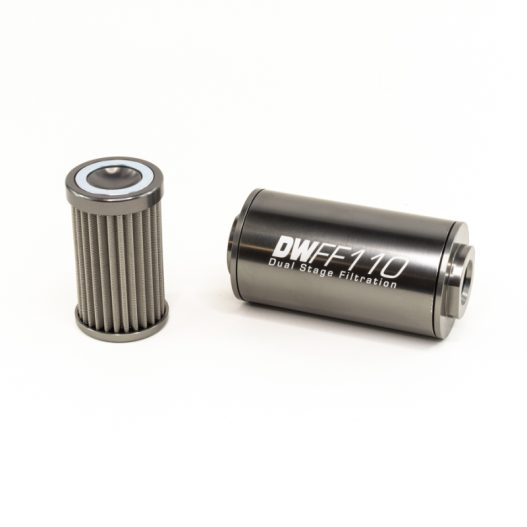

The increasing popularity of ethanol-based fuels such as e10 and e85 has created well-documented challenges in fuel system maintenance. The new DW fuel filters feature an industry first dual-stage magneto-mechanical filter element. This provides an extra layer of protection by trapping contaminants of corrosion with a neodymium magnet prior to mechanical filtration. By incorporating pleated, high surface area, stainless steel filtering material, the new DW fuel filters work equally well in non-ethanol based fuels. The stainless steel filters are compatible with a wide range of fuels including pump gas, race gas, MTBE, ethanol, methanol, and diesel. Superior life span, maximum fuel compatibility, and high temperature tolerance give DW stainless filter elements a distinct advantage over competitors’ glass and paper filter elements.
*Filter Housing Features*
- 2” diameter for easy in-line mounting
- 110mm length
- Anodized T6061 aluminum construction
- -10 AN ORB inlet and outlet
*Filter Element Features*
- Dual stage magneto-mechanical filtration
- 35mm neodymium magnet
- Pleated, high surface area stainless steel filter material
- Fully serviceable and reusable
- 100-micron stainless steel filter element
- Documented pressure drop vs flow on all elements
